Flammability Testing Equipment Built to Meet ISO and JB T Requirements for Fire Resistance Testing of Various Valve Types

Brand Name : TH

Model Number : VF-3079B

Certification : ISO9001 , CE

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 20 sets per month

Delivery Time : 7~15 work days

Packaging Details : Standard export wooden cases

Product Name : Flammability Testing Equipment Built to Meet ISO and JB T Requirements for Fire Resistance Testing of Various Valve Types

Place of origin : Beijing, China

Model : VF-3079B

Refrigeration timer : 0~99.99 (h/m/s), with an accuracy of 0.1S

Standard : ISO 10497-2004，ISO FDIS 19922，ISO FDIS 19921，JB/T 6899-1993

Size : 2000 × 3000 × 2000 (total height including exhaust system approximately 3300 mm)

Piping diameter : with a diameter of DN25

Power supply requirements : AC 220V / 50HZ

Contact Now

Flammability Testing Equipment for Valve Fire Resistance Testing

Specialized flammability testing equipment engineered to conduct combustion fire resistance tests on diverse valve types, ensuring compliance with international ISO and JB/T standards for fire resistance performance verification.

Standards Compliance

Manufactured in strict adherence to comprehensive testing standards including ISO 10497:2004 Valve Testing, ISO FDIS 19922 Requirements for Fire Resistance Test Rig, ISO FDIS 19921 Methods for Fire Resistance Testing of Valves, and JB/T 6899-1993 Fire Resistance Testing of Valves.

Technical Specifications

Valve specification range: DN15 to DN500
Maximum operating pressure: 10 MPa
Test chamber volume: 2000 mm × 3000 mm × 2000 mm (overall height with exhaust: 3300 mm)
Rapid heating from ambient temperature to 760°C within 2-5 minutes
Maintains stable temperature zone of 760-980°C for 30-minute combustion cycle
Rigid frame construction with simplified front feeding mechanism
Three thermocouples for multi-surface temperature monitoring
Compatible with LPG and other combustible fuel gases
Optional electric remote-controlled transfer trolley with automatic functions
Integrated computer control system for real-time monitoring and data analysis

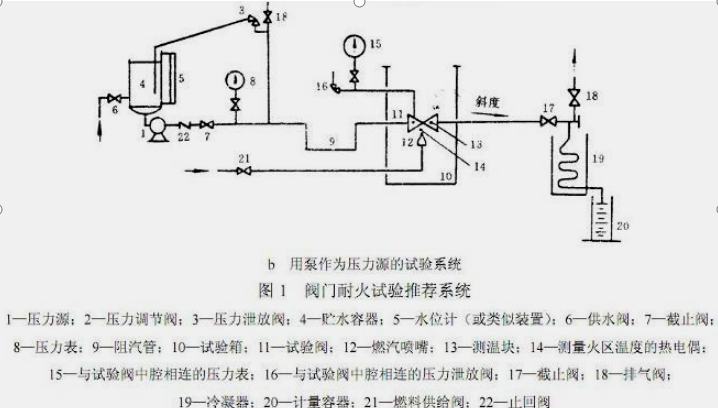

Test Chamber Piping System

Real-time monitoring of inlet and outlet water temperatures
Inlet water pressure gauge and internal pressure gauge with 1% calibration accuracy
Complete pressure regulating assembly with precision adjustment
Shut-off valves on both inlet and outlet pipelines
Specialized pipeline sealing components
DN25 diameter stainless steel tubing
Pipe clamping and fixing fixtures
Specimen cooling unit with automatic water spray cooling
Cooling timer: 0-99.99 (h/m/s) range, 0.1s accuracy
Top-mounted exhaust system
Condensing tube with leakage monitoring via flow meter

Control System Features

Premium-grade components for long-term stable operation
Imported temperature-sensitive thermocouples for accurate detection
Flexible free time setting and control functionality
Export-compliant imported components meeting international standards
Fuse-free protection switch with comprehensive safety mechanisms
Integrated computer control system for centralized management

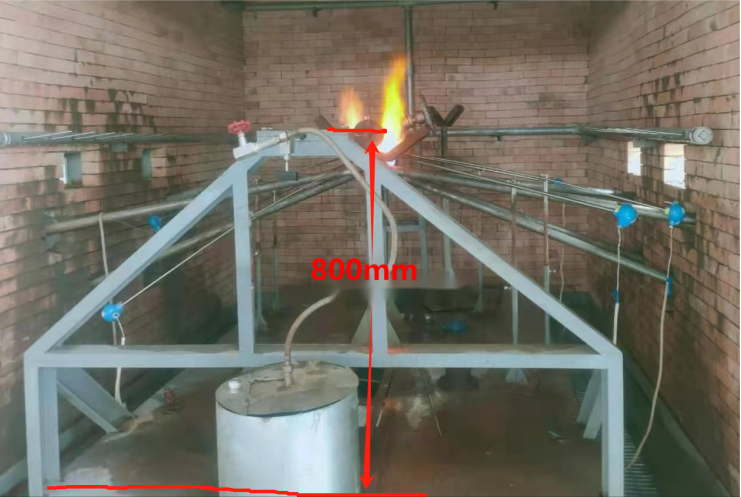

Equipment Images
